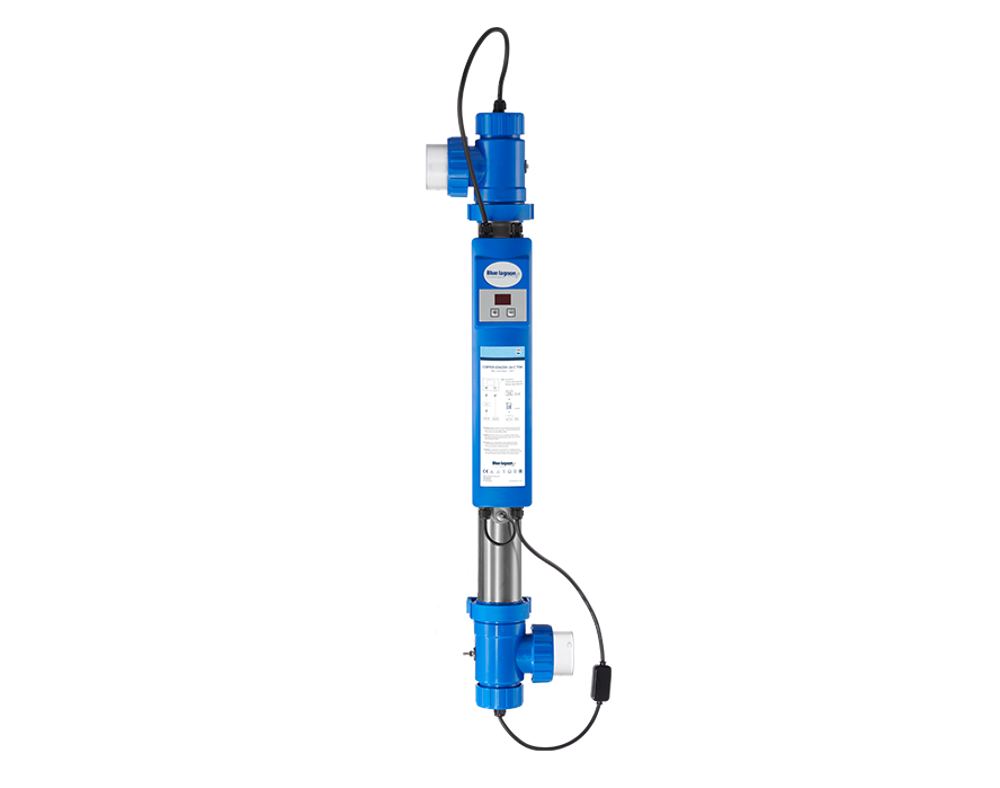

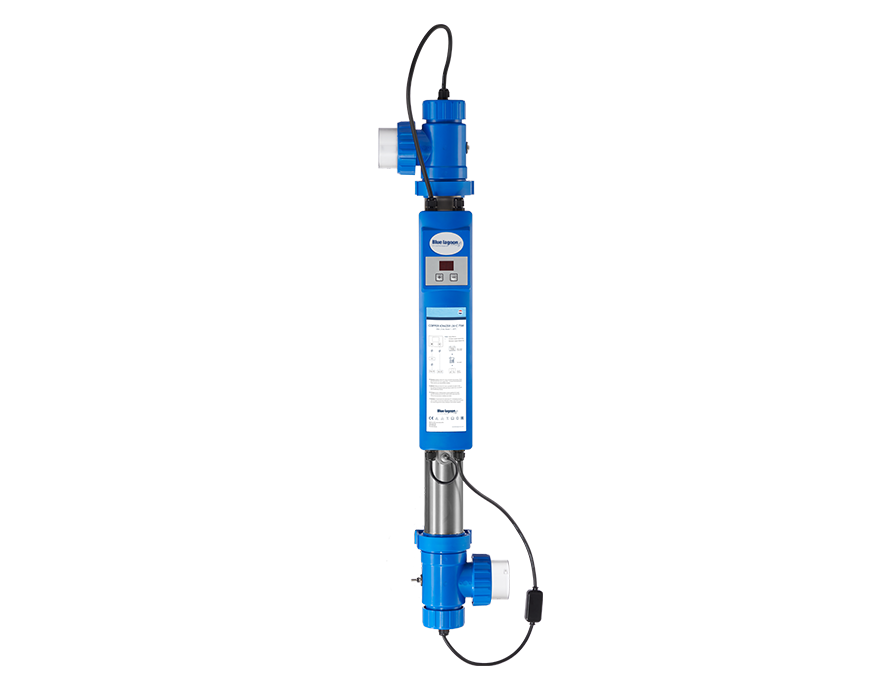

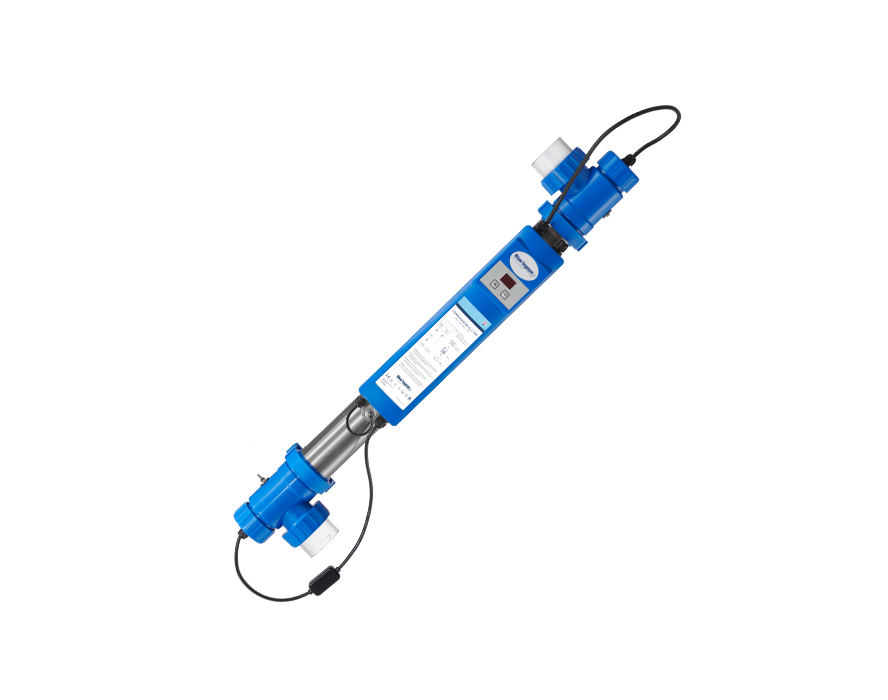

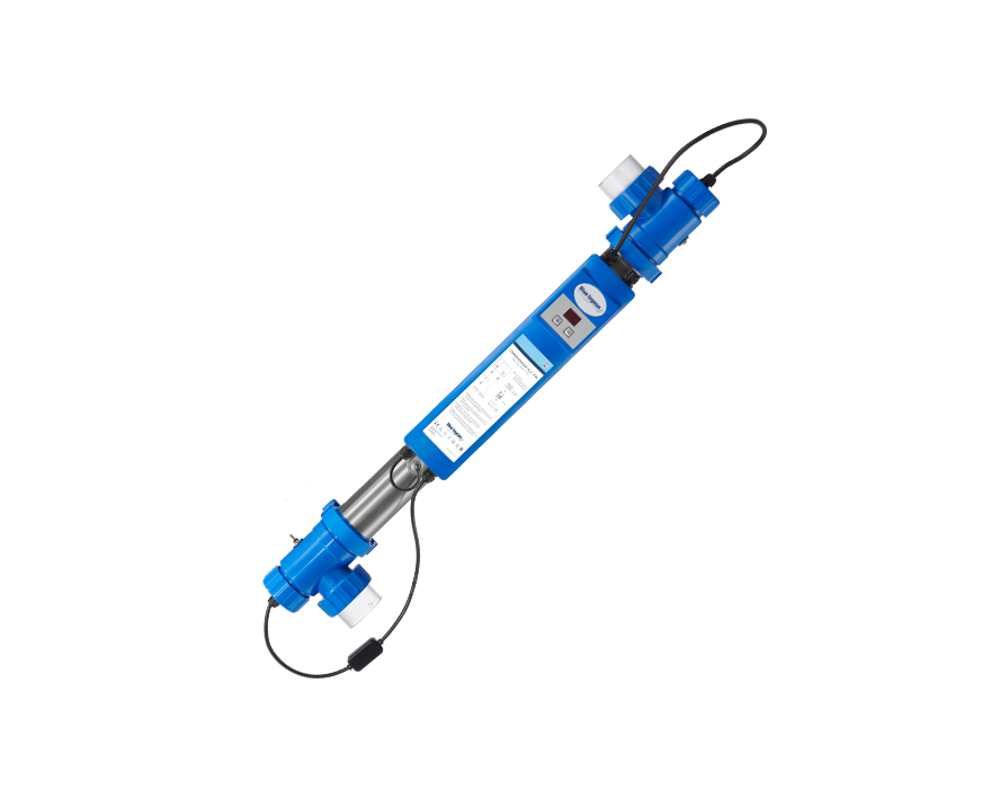

Copper Ionizer UV-C

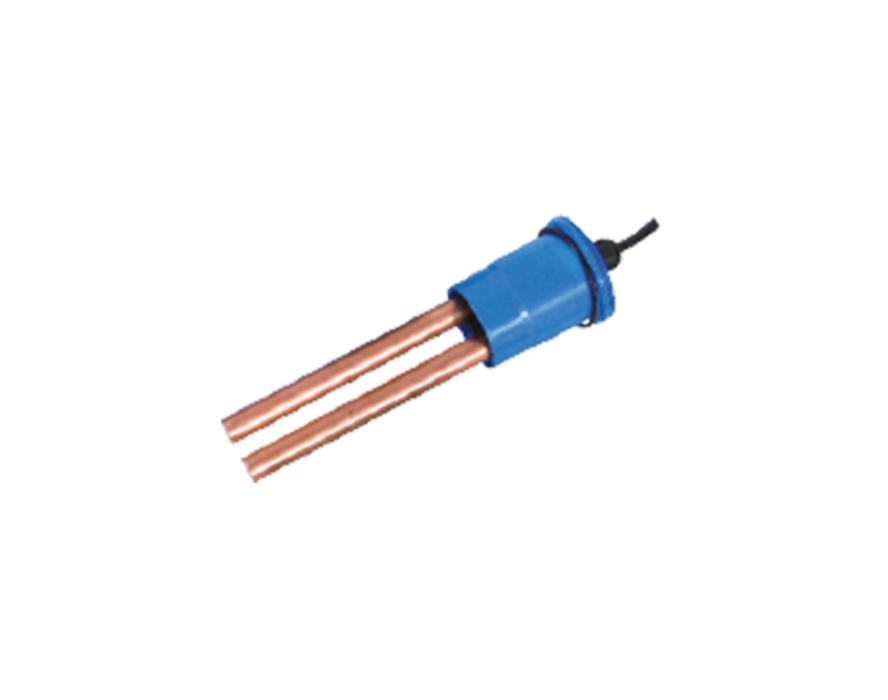

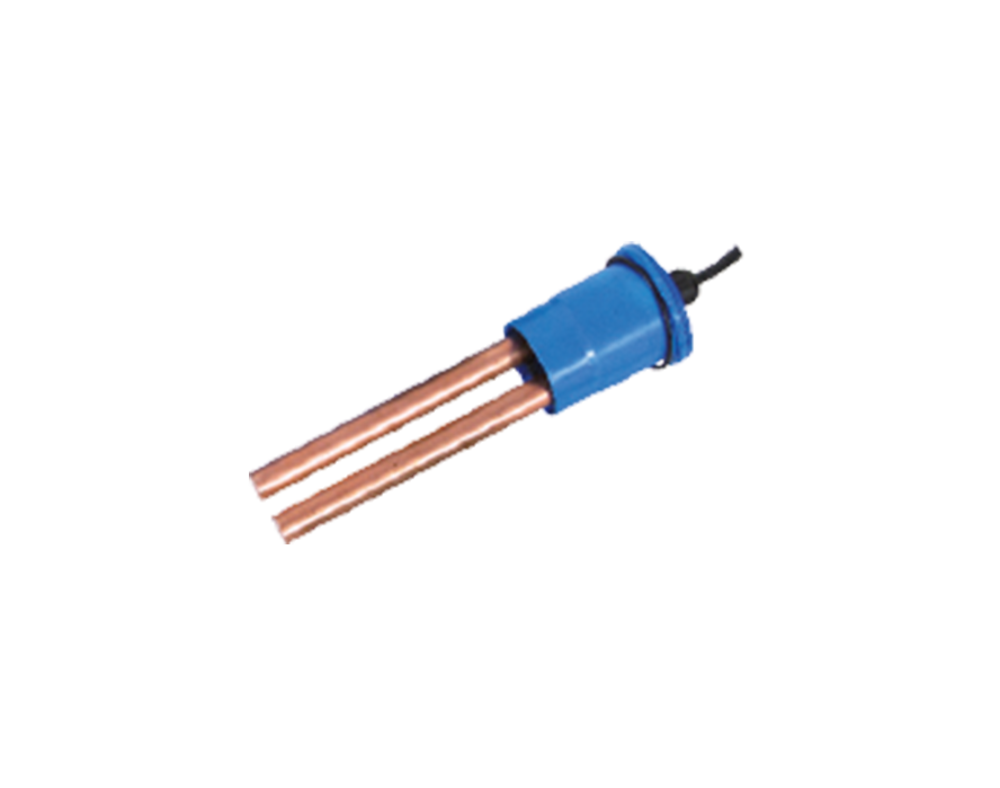

This combination of UV-C and copper electrolysis means you can have a pool with a minimum use of chlorine!* Electrically charged copper ions (Cu2+) in the water search for particles of opposite polarity, such as bacteria, viruses and fungi. Positively charged copper ions form electrostatic compounds with negatively charged cell walls of microorganisms. These compounds disturb cell wall permeability and cause nutrient uptake to fail. As a result, bacteria are no longer able to multiply and eventually die. The ions remain active until they are absorbed by a microorganism.

*Additional chlorine needed, depends on the frequency of use and general condition of the pool water.



Advantages of the Blue Lagoon Copper Ionizer UV-C

  • Up to 35% more UV-C yield as a result of reflection by the stainless steel reactor
  • Easy installation and maintenance
  • Comes with Ø63mm to Ø50mm fittings, 1½” female threaded
  • Made in the Netherlands



Pending EU regulations or conditional approval, national regulations apply to the trade and use of copper-containing products. The copper used in these units complies with the REACH registration. It is the sole responsibility of the buyer to inform himself/herself about applicable local regulations regarding the use of (and trade in) copper for water disinfection.

Technical specifications

Copper Ionizer UV-C 40W

Copper Ionizer UV-C 75W

Type

40.000 / 40W

75.000 / 75W

Item code

BH04402

BH04752

Rec. flow

11 m³/h

16 m³/h

Performance at rec. flow

30 mJ/cm²

30 mJ/cm²

Max. flow

23 m³/h

23 m³/h

Max. pressure

2 bar

2 bar

Scroll through table

Downloads

Operation

Electrically charged copper ions (Cu2+) in the water search for particles of opposite polarity, such as bacteria, viruses, and fungi. Positively charged copper ions form electrostatic compounds with negatively charged cell walls of microorganisms. These compounds disturb cell wall permeability and cause nutrient uptake to fail. As a result, bacteria are no longer able to multiply and eventually die. The ions remain active until they are absorbed by a microorganism.

With the Blue Lagoon UV-C Copper Ionizer, you have to test your pool water once every two weeks. You only need to test your water values with the supplied test strips and, if necessary, adjust the device to the correct level. Other ionizer systems dose approximately 2 ppm copper in your pool water. With Blue Lagoon UV-C Copper Ionizer, a dose of 0,7 ppm will be enough to fully and safely disinfect your pool. This device can reduce combined chlorine (chloramines) by up to 100%! Max. copper: 0,7 ppm. Connections: Ø63mm. Please notice the correct grounding!
