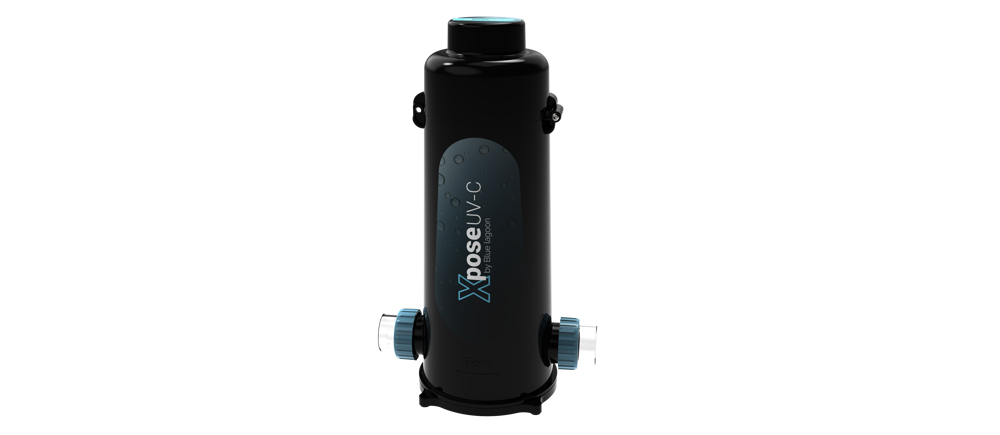

Xpose UV-C

The Xpose UV-C is our first stand-up pool-uv especially made for above and small built-in pools.

A plug-and-play concept that’s powerful, affordable, and easy to install. Now literally all pool owners can enjoy safe and healthy swimming water sustained by our UV-C technology.

Technical specifications

Lamp power

42 Watt

Supply voltage

230 V 50/60Hz

Max input current

0,25 A

Lamp life

9.000 hours

Content

10 liter

Rec. flow for 30 mJ/cm2

<15 m3/h - 230 L/min.

Max. flow

15 m3/h - 250L/min.

Max. pressure

1 bar - 15.5 psi

Pressure loss

0,027 bar @ 5m3/h

0,11 bar @ 10,5 m3/h

0,21 bar @ 15 m3/h

Max. temperature

40 degrees C / 104 degrees F

Min. temperature

1 degree C / 34 degrees F

Connection size

50 mm hard tube & 32 or 38 mm flexible hose (tubes and hoses are not included)

Material

High quality copolymer
