Xpert MP UV-C 400 W

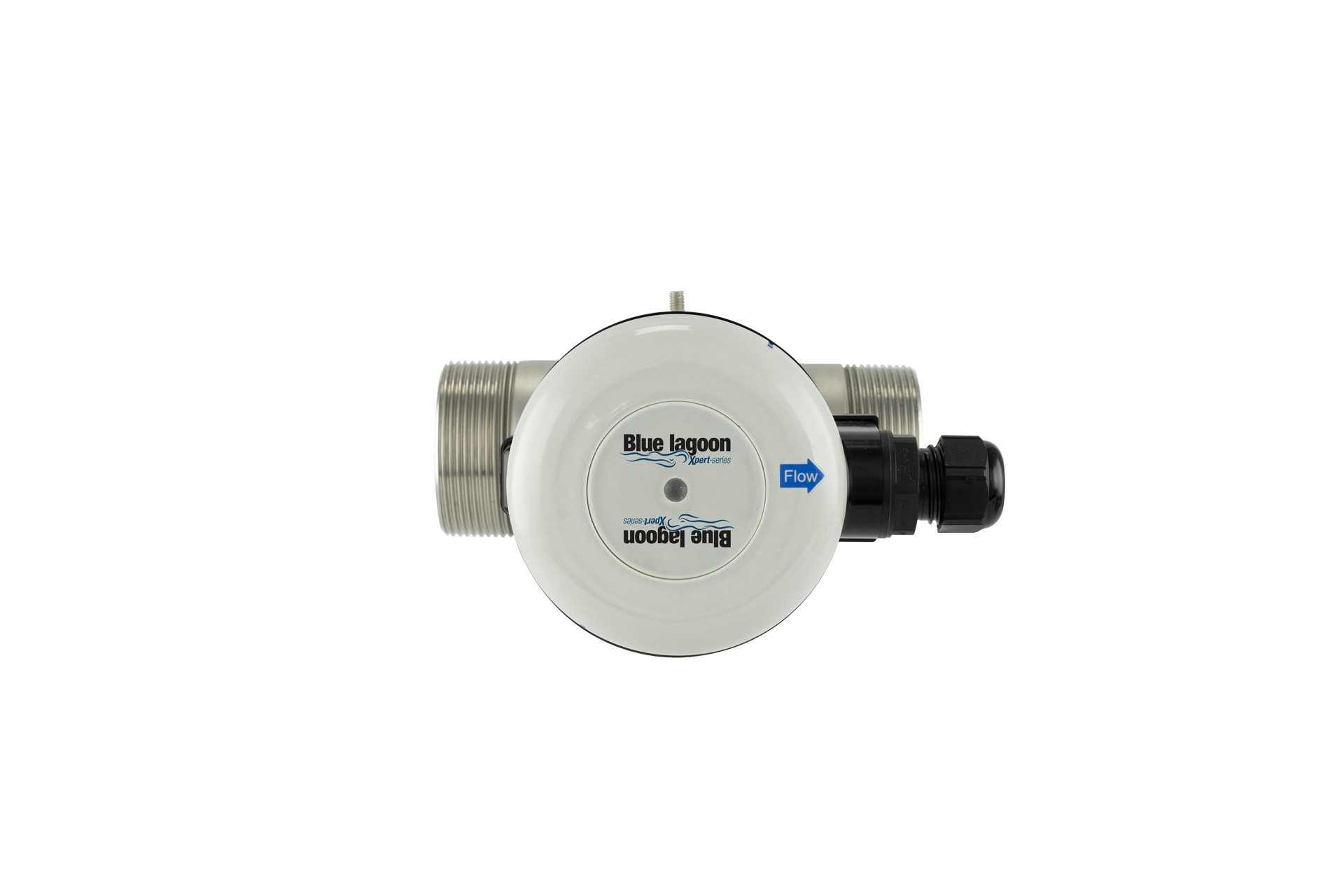

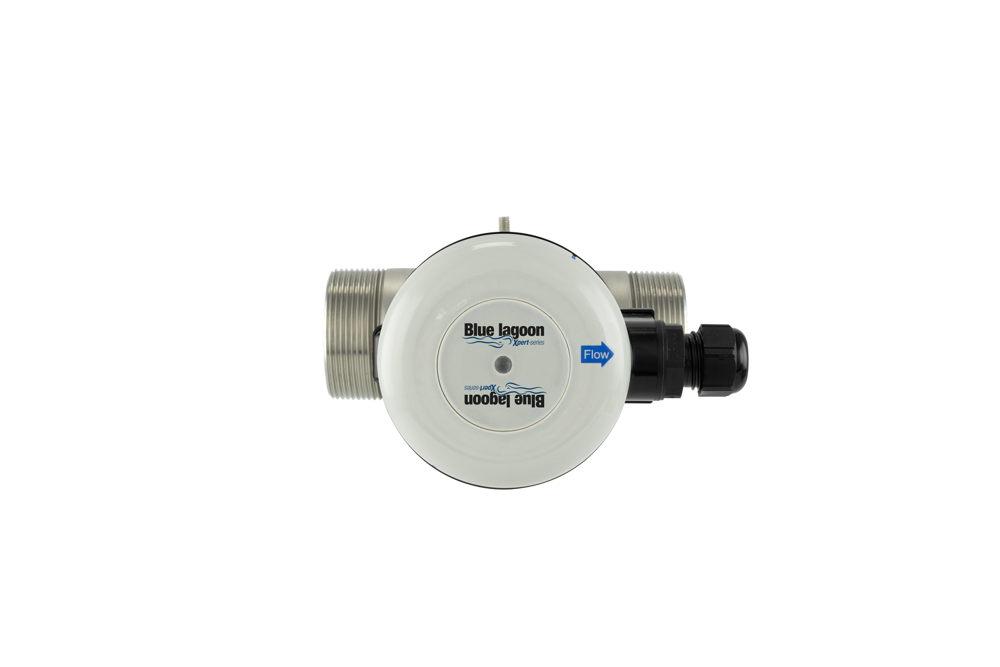

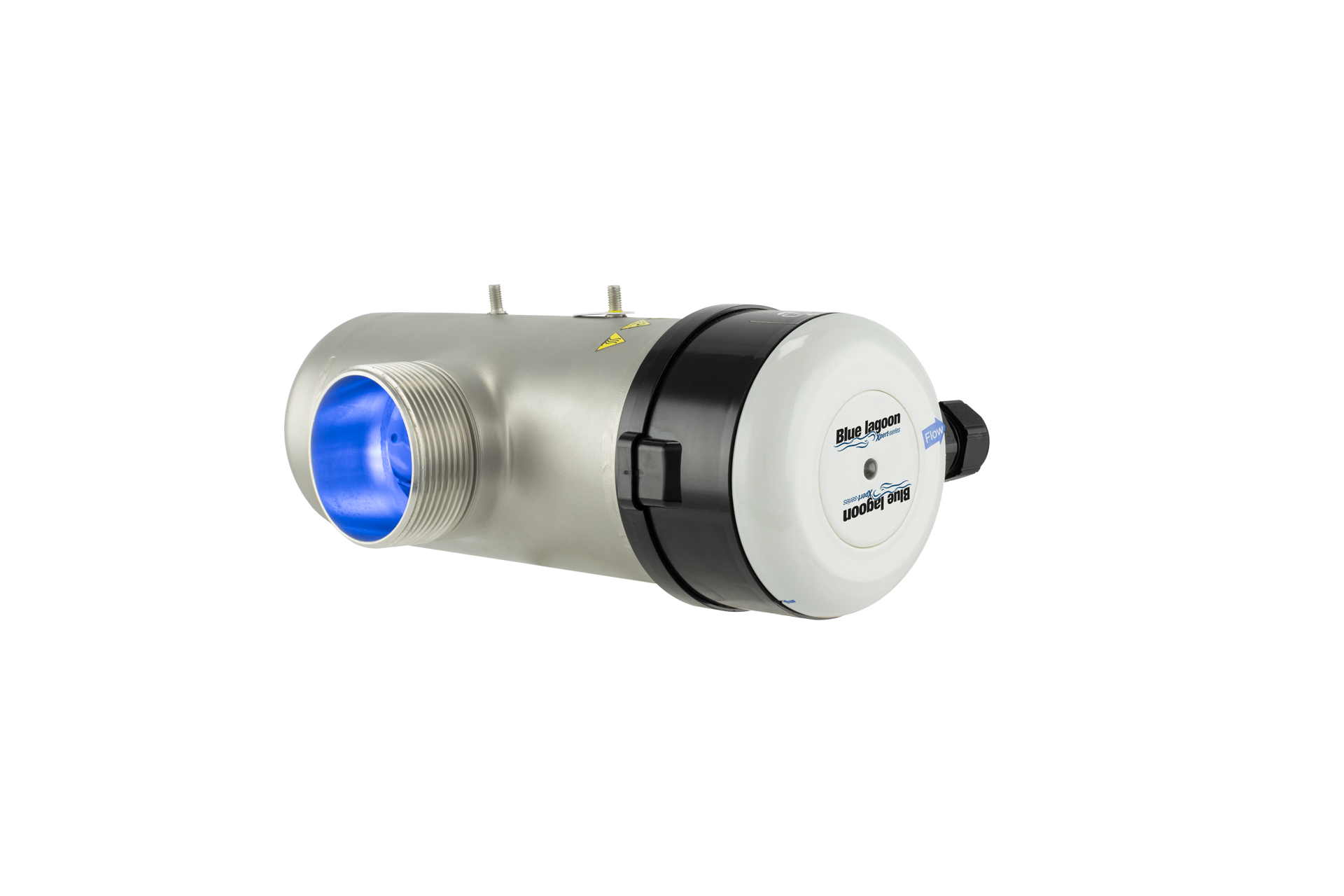

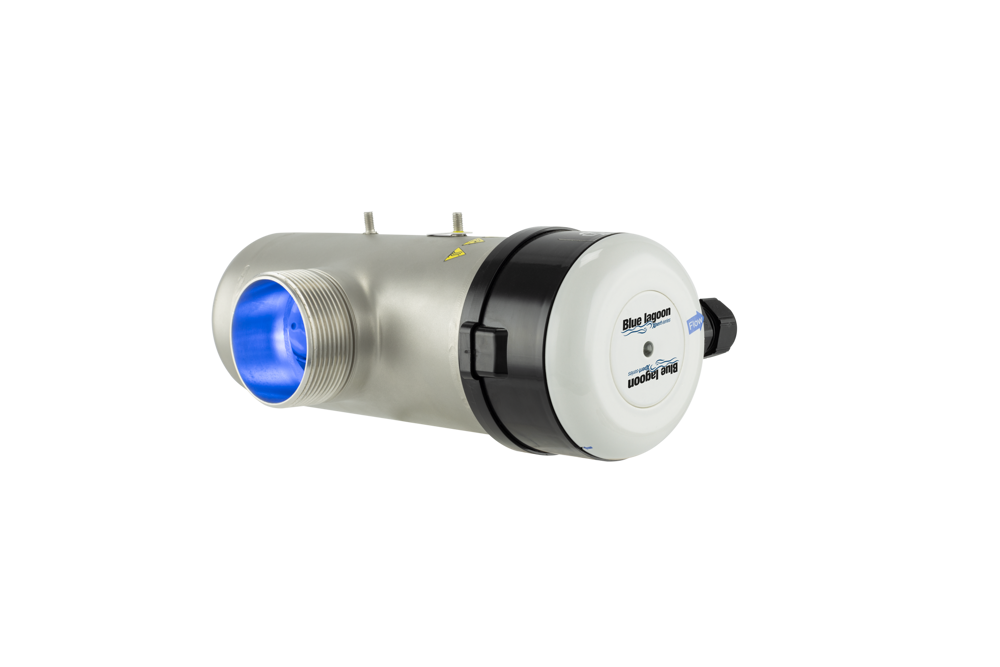

Blue Lagoon Xpert-Series MP UV-C 400 W

The Blue Lagoon Xpert-Series medium-pressure UV lamps emit a wide spectrum of Ultraviolet (UV) light, which gives very good disinfection results and is also excellent for photolysis applications like the reduction of chloramine in pool applications. The single-ended lamp in combination with the S.B.T. (Single-end Bayonet Technology) and the on-chamber visual lamp status indication makes the systems extremely user-friendly. We offer different systems with medium-pressure lamps ranging from 400 W to 600 W. They have a compact and cross-flow irradiation chamber design with low-pressure loss. The single-ended lamp is easy to (re)place. Last but not least, the Blue Lagoon medium-pressure units offer an effective chloramine reduction.

Advantages

  • Effective chloramine reduction
  • Compact chamber design
  • The breakdown of chloramines ensures less water change and therefore less consumption of water
  • Easy to (re)place a single-ended lamp
  • Visual lamp indication in the lamp head
  • Fast lamp replacement without tools
  • Glass bead-blasted chamber of stainless steel 316L
  • Cross-flow irradiation chamber design, low-pressure loss
  • Electronic lamp power supply
  • Long lamp life
  • Internal irradiation chamber finish of RA 0,8 μm
  • Less use of chemicals

Technical specifications

Art. number

PBM00401

Type

400-85

Max. pressure

10 bar

Flow 400 J/m² (Disinfection)

13 m³/h

Flow 600 J/m² (Chloramine reduction)

8 m³/h

Housing material

316L

Lamp power

400 W

Lifespan lamp

9,000 hours

Scroll through table

Downloads

Download the Blue Lagoon catalogue!

Our Blue Lagoon catalogue is filled with all of our UV-C pool units to safely disinfect pools. Every unit has its qualities and is suitable for different kinds and sizes of pools.

Download our catalogue or read our frequently asked questions
