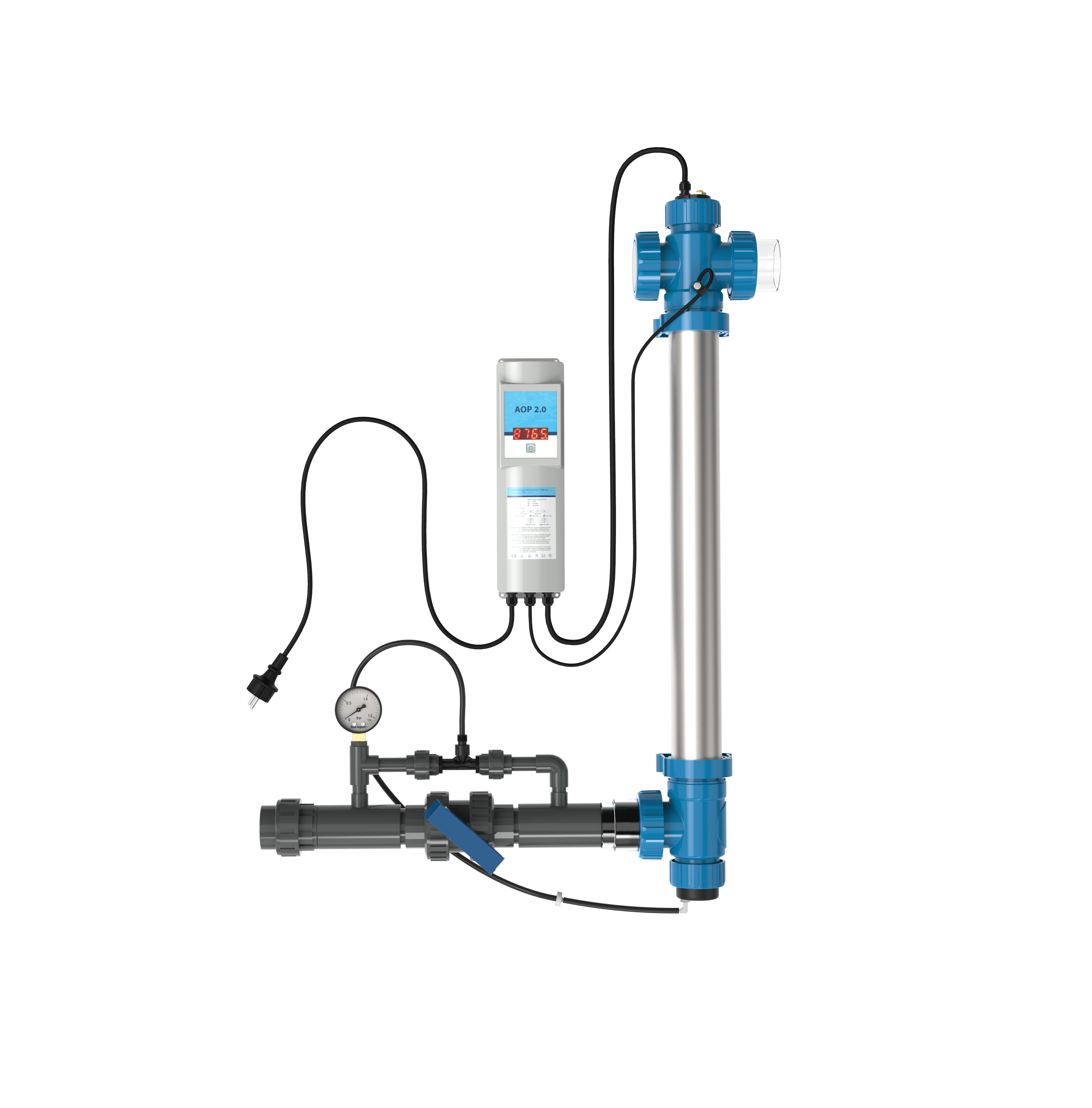

Xpert AOP Compact Ozone & UV-C

The combination of ozone and UV-C, integrated into this smart-designed disinfection system, ensures fresh and healthy pool water with the possibility of providing a minimum use of chlorine.

Advantages of the Blue Lagoon Xpert AOP Compact Ozone & UV-C

  • This unit provides triple disinfection: ozone, OH radicals, and UV-C
  • A stand-alone electronic ballast to guarantee an efficient and stable power supply in addition to maximum installation flexibility
  • Up to 35% more UV-C yield as a result of reflection by the stainless steel reactor
  • DUPLEX stainless steel housing, suitable for use in chlorine and salt electrolysis pools
  • The ozone UV-C lamp produces ozone and UV-C for 9.000 hours
  • The device will indicate when the lamp needs to be replaced
  • Easy installation and maintenance



Request more information or download the manual
AOP Compact Ozone CA4A0818

Technical specifications

AOP Compact Ozone & UV-C 2.0

Type

75.000 / 75W

item code

BH12752

Rec. flow

18m³/h

Performance at rec. flow

30 mJ/cm²
Scroll through table

Downloads

Blue Lagoon UV C AOP 2 0 Manual Blue Lagoon Xpert AOP leaflet 2024 EN

Operation


This revolutionary combination of ozone and UV-C makes it possible to have a pool with minimal chlorine usage. Through the supplied venturi, air is sucked in from the outside into the space between the UV-C lamp and the quartz sleeve. The special UV-C lamp generates radiation of both 254nm and 185nm. The 185nm radiation converts the available oxygen into ozone. The produced ozone (max. 0,6 g/h) is mixed with water through the venturi to perform its disinfection and oxidizing job. Inside the UV-C housing, any residual ozone will be converted by the 254nm UV-C radiation into OH radicals (the so-called Advanced Oxidation
Process) that have an even stronger oxidizing power than ozone.

Download the Blue Lagoon catalogue!

Our Blue Lagoon catalogue is filled with all of our UV-C pool units to safely disinfect pools. Every unit has its qualities and is suitable for different kinds and sizes of pools.

Download our catalogue or read our frequently asked questions
